Description
Expand your ECU and build custom functionality with the DigiTune Fusion. Unmatched in connectivity, versatility and configurability, our proprietary system can acquire data from sensors, communicate via CANbus, log data, perform custom data processing and control functions and drive outputs.
Harware specification:
- 4x 10A Power outputs configurable for high side or low side operation (25A max combined low side or high side current)
- 8x 0-5V Analogue inputs (protected up to 25V)
- 2x 0-5V Analogue outputs
- 8x 0-5V Digital / PWM inputs (protected up to 25V)
- 4x 5V Digital/PWM outputs
- 4x K Thermocouple inputs
- 3 axis accelerometer
- Fully configurable CAN bus input and output frames
- Internal SD card logging (16GB SD card included)
- USB-C connection for configuration
Fusion features on board processing function blocks which can be combined or chained together to perform simple tasks or build complex custom functions:
- 16 element single input lookup/transfer tables

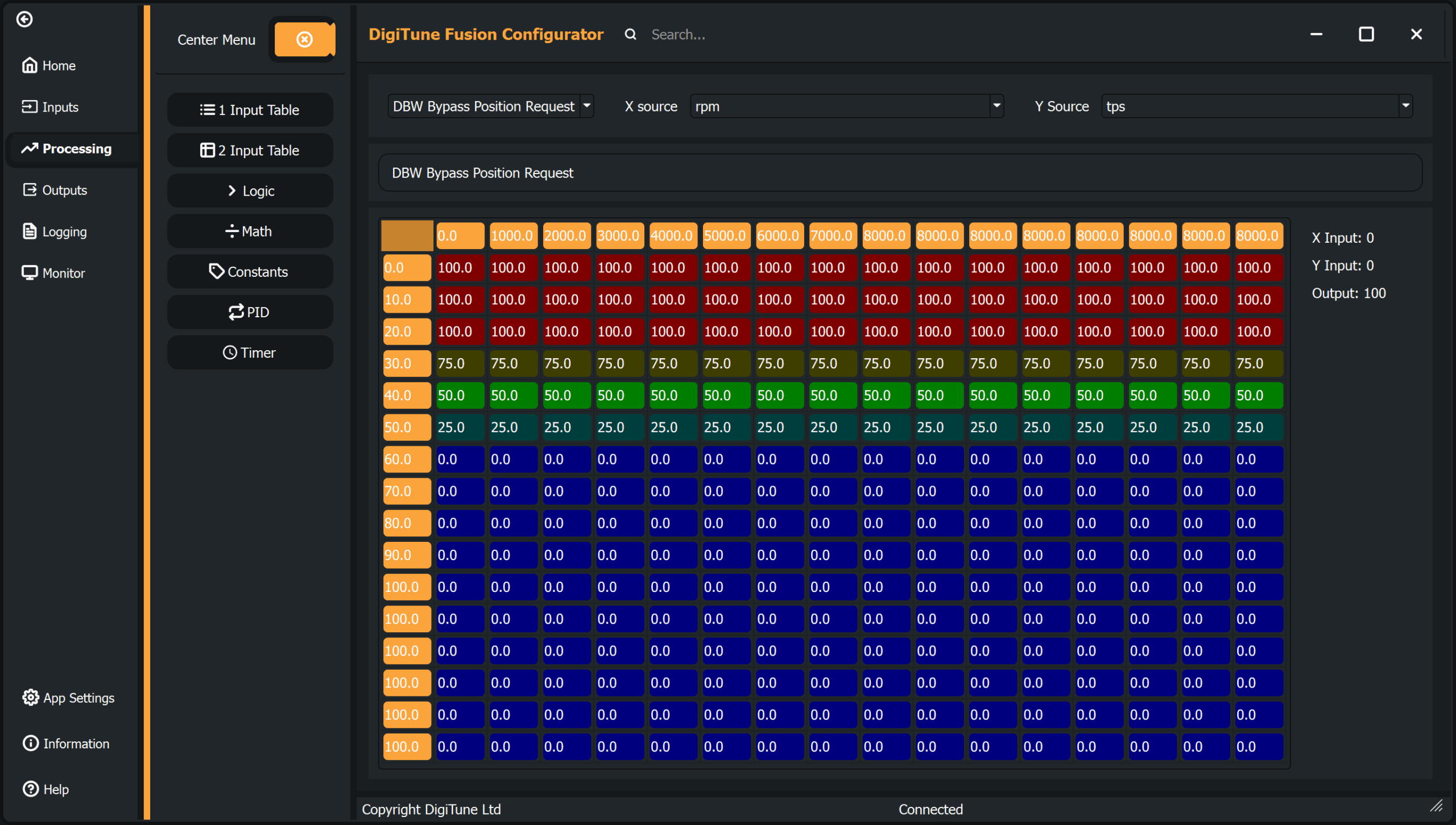

- 16×16 dual input (XY input) lookup/transfer tables
- Logic comparison functions
- Math Functions
- PID Controllers
- Timers
We’ve listed a few potential applications that the Fusion would be suitable for below. The limitation is your imagination!
- DBW Throttle Controller
- Supercharger Bypass Valve Controller
- Water/Meth Injection Controller
- 5th/Auxillary Injector Controller
- Boost Pressure Controller
- EGT Monitor with CAN or Analogue Out
- Data Logger
- ECU CANbus Input/Output Expander
Not intended for road use in safety critical applications
